$5,598.00

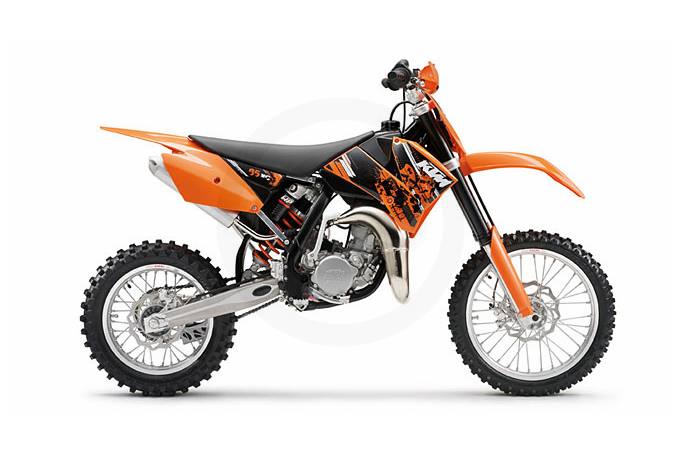

2009 KTM 85 XC
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

With the KTM 85 XC, up and coming pros between the ages of 11 to 15 have the ultimate winning machine on their side.


Even under extreme loads, this full-fledged racing bike (seat height = 900 mm) wins you over with its sturdy frame, 43-mm WP upside-down forks and fully adjustable PDS system. And together with its top quality, exhaust-controlled cylinder, the even further improved engine supplies maximum power and plenty of torque.


What more could a biker’s heart desire?

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 84.9 cc
    • Bore x stroke: 47/48.95 mm (1.85/1.93")
    • Starter: Kickstarter
    • Transmission: 6 gears
    • Carburetor: Keihin PWK 28
    • Control: Power valve
    • Engine lubrication: Mixture lubrication 1:40
    • Transmission oil: 15W50
    • Primary drive: 19:66
    • Final drive: 14:46
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Moric digital 2M1
    Chassis
    • Frame: Double grinded central double-cradle-type frame
    • Subframe: Aluminium 7020
    • Handlebar: Aluminium Ø 22 mm (0.87")
    • Front suspension: WP USD Ø 43 mm (1.69")
    • Rear suspension: WP monoshock PDS
    • Suspension travel front/rear: 275/300 mm (10.83/11.81")
    • Brakes, front/rear: Disc brake Ø 220/200 mm (8.66/7.87")
    • Rims, front/rear: 1.6 x 17"; 1.85 x 14" Aluminium
    • Tires, front/rear: 70/100-17; 90/100-14
    • Chain: 1/2 x 5/16" O-Ring
    • Main silencer: Aluminium 85 SX
    • Steering head angle: 66°
    • Wheel base: 1290 mm ± 10 mm (50.79"±0.39")
    • Ground clearance (unloaded): 385 mm (15.16")
    • Seat height: 865 mm (35.06")
    • Tank capacity: approx. 5 liters (1.32 gal)
    • Weight (no fuel): approx. 66 kg (145.5 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 84.9 cc
    Bore and Stroke 47 x 48.95 mm (1.85 x 1.93 in.)
    Cooling Liquid cooled
    Fuel System Keihin PWK 28
    Ignition Moric digital 2M1
    Chassis
    Front Suspension WP USD Ø 1.69 in. (43 mm); Travel: 10.83 in. (275 mm)
    Front Brakes Disc brake Ø 8.66 in. (220 mm)
    Front Tire 70/100-17
    Rear Suspension WP monoshock PDS; Travel: 11.81 in. (300 mm)
    Rear Brakes Disc brake Ø 7.87 in. (200 mm)
    Rear Tire 90/100-14
    Dimensions
    Dry Weight 145.5 lbs (66 kg)
    Fuel Capacity 1.32 gal (5 l)
    Wheelbase 50.79 ± 0.39 in. (1290 ± 10 mm)
    Ground Clearance 15.16 in. (385 mm)
    Seat Height 35.06 in. (865 mm)
    Rake 66°
    Transmission
    Transmission 6 gears
    Final Drive 14:46

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 85 XC
    Style Motocross
    MSRP* $5,598.00
    Chassis
    Front Suspension WP USD Ø 1.69 in. (43 mm); Travel: 10.83 in. (275 mm)
    Front Brakes Disc brake Ø 8.66 in. (220 mm)
    Front Tire 70/100-17
    Rear Suspension WP monoshock PDS; Travel: 11.81 in. (300 mm)
    Rear Brakes Disc brake Ø 7.87 in. (200 mm)
    Rear Tire 90/100-14
    Dimensions
    Dry Weight 145.5 lbs (66 kg)
    Fuel Capacity 1.32 gal (5 l)
    Wheelbase 50.79 ± 0.39 in. (1290 ± 10 mm)
    Ground Clearance 15.16 in. (385 mm)
    Seat Height 35.06 in. (865 mm)
    Trail
    Rake 66°
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 84.9 cc
    Bore and Stroke 47 x 48.95 mm (1.85 x 1.93 in.)
    Cooling Liquid cooled
    Compression Ratio
    Fuel System Keihin PWK 28
    Ignition Moric digital 2M1
    General
    Colors
    Warranty
    Transmission
    Transmission 6 gears
    Final Drive 14:46
