$7,598.00

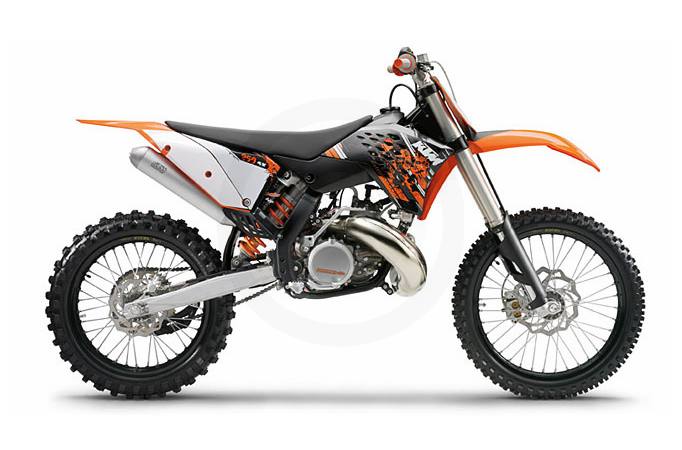

2009 KTM 250 SX
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 249 cc
    • Bore x stroke: 66.4 x 72 mm (2.61 x 2.83")
    • Starter: Kickstarter
    • Transmission: 5 gears
    • Carburetor: Keihin PWK 36 S AG
    • Control: TVC power valve
    • Lubrication: Mixture oil lubrication 1:60
    • Transmission oil: Motorex, SAE 15W50
    • Primary drive: 26:72
    • Final drive: 13:48
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium
    • Handlebar: Renthal, Aluminium Ø 28/22 mm (1.10/0.87")
    • Front suspension: WP USD Ø 48 mm (1.89")
    • Rear suspension: WP PDS shock absorber
    • Suspension travel front/rear: 300 / 335 mm (11.81 / 13.19")
    • Brakes, front/rear: Disc brakes 260 / 220 mm (10.24 / 8.66")
    • Rims, front/rear: 1.60 x 21"; 2.15 x 19" Excel
    • Tires, front/rear: 80/100-21"; 110/90-19"
    • Chain: 5/8 x 1/4"
    • Main silencer: Aluminium
    • Steering head angle: 63.5°
    • Wheel base: 1475 ± 10 mm (58.07 ± 0.39")
    • Ground clearance (unloaded): 385 mm (15.16")
    • Seat height: 985 mm (38.78")
    • Tank capacity: approx. 8 liters (2.11 gal)
    • Weight (no fuel): approx. 95.4 kg (208 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 249 cc
    Bore and Stroke 66.4 x 72 mm (2.61 x 2.83 in.)
    Cooling Liquid cooled
    Fuel System Keihin PWK 36 S AG
    Ignition Kokusan
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 11.81 in. (300 mm)
    Front Brakes Disc brakes 10.24 in. (260 mm)
    Front Tire 80/100-21 in.
    Rear Suspension WP PDS shock absorber; Travel: 13.19 in. (335 mm)
    Rear Brakes Disc brakes 8.66 in. (220 mm)
    Rear Tire 110/90-19 in.
    Dimensions
    Dry Weight 208 lbs (95.4 kg)
    Fuel Capacity 2.11 gal (8 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ± 10 mm)
    Ground Clearance 15.16 in. (385 mm)
    Seat Height 38.78 in. (985 mm)
    Rake 63.5°
    Transmission
    Transmission 5 gears
    Final Drive 13:48

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 250 SX
    Style Off-Road
    MSRP* $7,598.00
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 11.81 in. (300 mm)
    Front Brakes Disc brakes 10.24 in. (260 mm)
    Front Tire 80/100-21 in.
    Rear Suspension WP PDS shock absorber; Travel: 13.19 in. (335 mm)
    Rear Brakes Disc brakes 8.66 in. (220 mm)
    Rear Tire 110/90-19 in.
    Dimensions
    Dry Weight 208 lbs (95.4 kg)
    Fuel Capacity 2.11 gal (8 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ± 10 mm)
    Ground Clearance 15.16 in. (385 mm)
    Seat Height 38.78 in. (985 mm)
    Trail
    Rake 63.5°
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 249 cc
    Bore and Stroke 66.4 x 72 mm (2.61 x 2.83 in.)
    Cooling Liquid cooled
    Compression Ratio
    Fuel System Keihin PWK 36 S AG
    Ignition Kokusan
    General
    Colors
    Warranty
    Transmission
    Transmission 5 gears
    Final Drive 13:48
